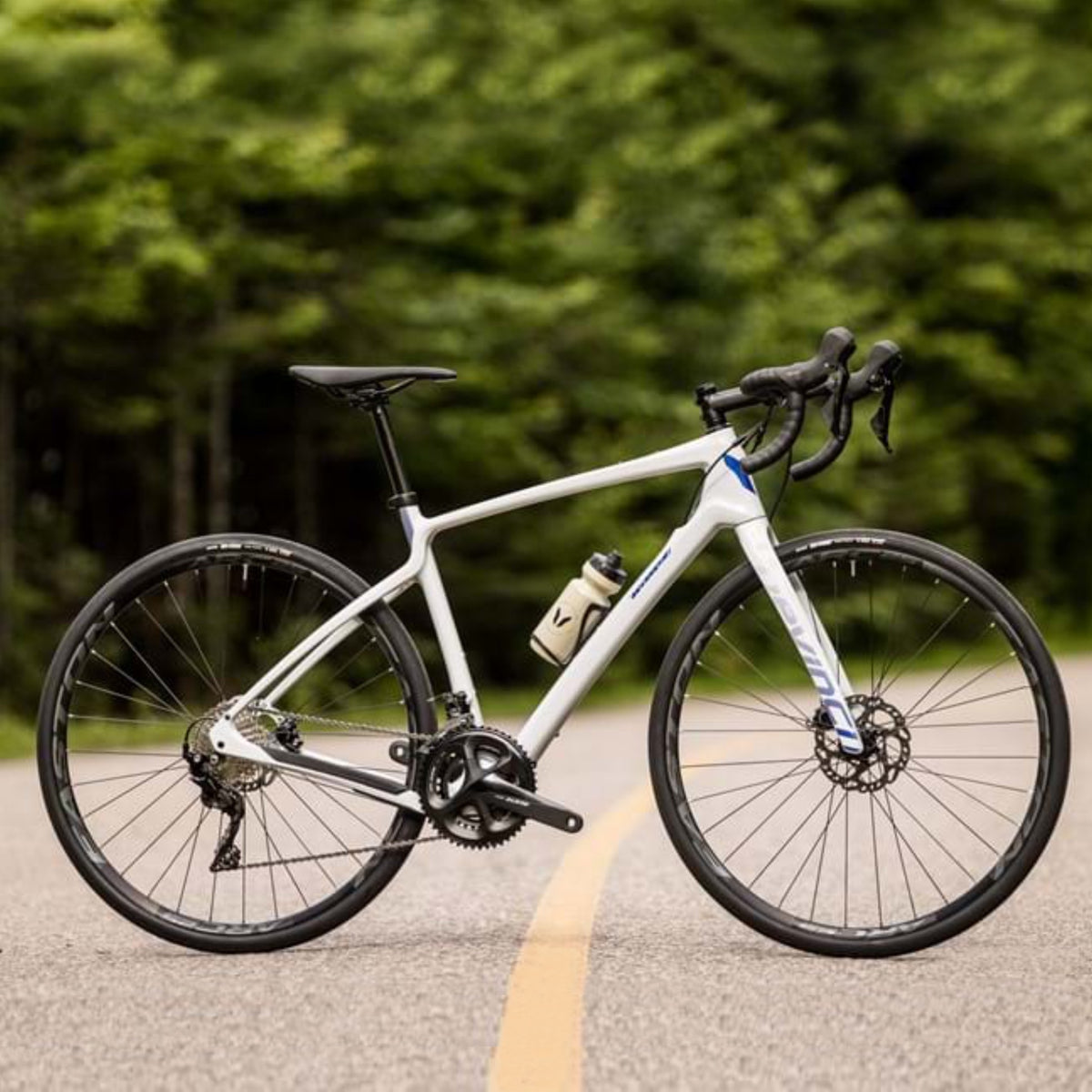

da vinci gravel bike Devinci Hatchet Carbon - 105

da vinci gravel bike Devinci Hatchet Carbon - 105Wherever you roll, Hatchet is willing, able and highly capable. This versatile, fun igniting platform merges off road DNA with a moonshot mindset that shreds Strava gravel, brings the party to Grinduro and even plays nice on pure pavement. Hatchet has 700c x 45mm 650b x 2. 1 tire clearance. When its time to slow your roll, 160mm flat mount brakes stop on a dime. Additional details include three bottle mounts (two in the frames, one under the down

Wherever you roll, Hatchet is willing, able — and highly capable. This versatile, fun-igniting platform merges off-road DNA with a moonshot mindset that shreds Strava gravel, brings the party to Grinduro and even plays nice on pure pavement. Hatchet has 700c x 45mm / 650b x 2.1’’ tire clearance. When it’s time to slow your roll, 160mm flat-mount brakes stop on a dime. Additional details include three bottle mounts (two in the frames, one under the down tube), a top-tube mount for added storage on longer rides/races, discrete rack/fender mounts and a capped-thru axle fork for an ultra-clean look and a lifetime warranty that won’t let you down.

Exceedingly responsive handling, no matter rider size/height, thanks to a size specific carbon layup that promotes consistent stiffness across all frame sizes. High modulus fibers used in strategic areas maximize strength and rigidity.

Frame

FRAME - Carbon DMC-R HR
FORK - Devinci Full Carbon
HEADSET - FSA Orbit | C40 | Integrated
SEAT CLAMP - Alloy CNC | 27.2mm

Cockpit

HANDLEBAR - V2 Pro | B:31.8mm | R:70mm | D:120mm
STEM - V2 Pro | B:31.8mm | 6°
SADDLE - V2 Pro
SEATPOST - V2 Elite | 27.2mm
HANDLEBAR TAPE - Super Soft

Brakes

FRONT SHIFTER / BRAKE - Shimano 105 R7020/R7070
REAR SHIFTER / BRAKE - Shimano 105 R7020/R7070
ROTORS - Shimano RT70 | Centerlock | 160mm

Drivetrain

REAR DERAILLEUR - Shimano 105 R7000 | 11s
FRONT DERAILLEUR - Shimano 105 R7000 | 2s
CRANKSET - Shimano 105 R7000 | 50/34T
BOTTOM BRACKET - FSA BB386/PF30 | Pressfit
CASSETTE - Shimano 105 R7000 | 11s | 11-32T | SH
CHAIN - Shimano HG601 | 11s

Wheels

FRONT RIM - Easton ARC25 | 25mm inner | TR
FRONT HUB - Shimano 105 R7070 | Centerlock | TA 12x100mm
REAR RIM - Easton ARC25 | 25mm inner | TR
REAR HUB - Shimano 105 R7070 | Centerlock | TA 12x142mm | SH
SPOKES - Sapim Stainless 14G w/Nylok
TIRES - Maxxis Re-fuse | 700x32c | MaxxShield TR

• The Intake port

  State-of-the-art intake port complies with all brake configurations for streamlined frame aesthetics and enhanced ease of use.

• Internal cable routing

  Uses full hose to keep debris out and for longer-lasting, silky smooth shifting.

• Front derailler mount cover

  Ultra-clean aesthetics when using 1x drivetrain.

• 4x mount options

  Top tube mount, 2x bottle cage in the frame and 1x under the DT.

• Dual Core Fusion - Gravel Spec

  Dual Core engineering strengthens the bottom half of the bike with a carbon blend and a dynamic tube-shape design for better power transfer and lateral stiffness, while the top half design delivers compliance and comfort for improved overall handling.

• 386 EVO BB

  Stiffest option with larger, more durable bearings while running standard 30mm axle crankset.

• Fork with capped axle, internal fender mount and discrete rack mount

  Streamlined, debris shunning capped-axle fork. Frame and fork feature internal fender- and discrete rack-mounts for fast, clean aesthetics.

• BB Interchange

  Ingenious BB Interchange provides quick access to frame internals for easy cable routing, assembly and maintenance.
